KOSMEK pneumatic datum cylinder WM series, Zero clearance,jig machine.

FOB Reference Price:Get Latest Price
US $900-1,500 / Units | 1 Unit/Units (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Japan
Brand Name:
KOSMEK
Model Number:
WM0081,WM0091,WM0101,WM0121,WM0131,WM0151,WM0161,WM0181,WM0201
Condition:
New
Supply Ability
Supply Ability:
100 Unit/Units per Month
Packaging & Delivery
Packaging Details
Standard, secure packaging.
Port
Osaka
Lead Time :
Delivery 2 month after payment confirmation.

Specifications

WM series Datum Cylinder is a highly precise location pin in which the diameter expands and contracts using pneumatic force.

KOSMEK pneumatic datum cylinder WM series, Zero clearance,jig machine.





Common location pin requires clearance between pin and hole.



g3249





Zero clearance using Datum Cylinder.



High precision 3μm!   Shortened setup time!   Reduced total cost!

g5441

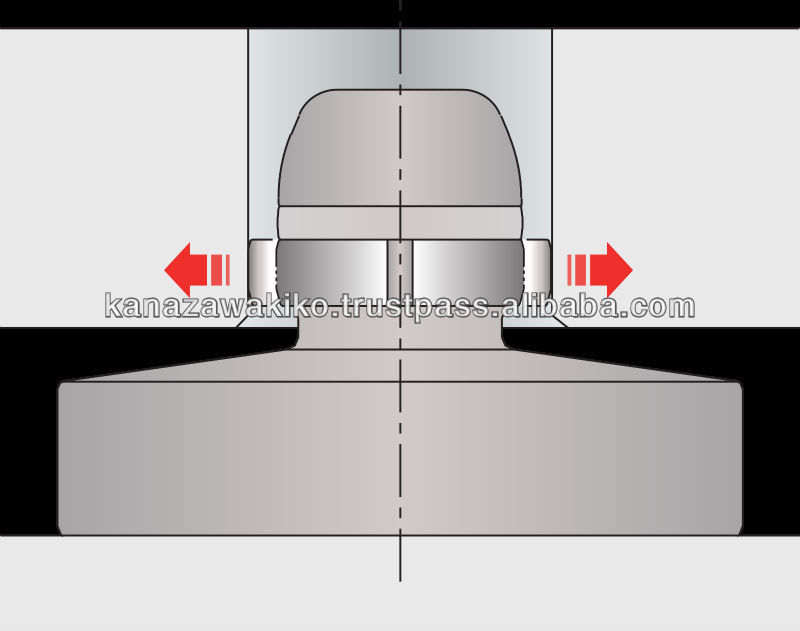

Pin diameter expands to match locating hole.
  Kosmek Datum Cylinder :
  Pin contracts to allow easy installation of workpiece.
  Pin expands to ensure proper locating of workpiece.













g4739_1

Repeatable positioning function



  The repeatable positioning is

3μm











g4739_2Air blow function

Foreign substances such as cutting power can be removed via the air blow function.











g4739_3

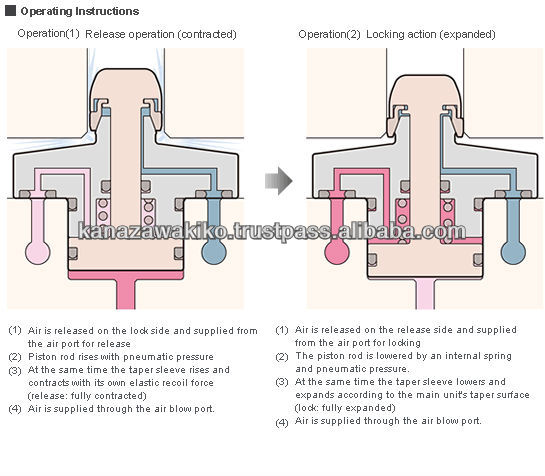

Double-action positioning cylinder



Locating is done by air pressure and spring force together.

Locking with pneumatic force
Release via pneumatic force











105wm_d1









105wm_e1
